BOTH-EYES-OPEN” SHOOTING
Illuminated reticles use Trijicon's Bindon Aiming Concept® (BAC) feature to provide a clear aiming point that draws the shooter’s eye for fast engagement.
CONFIDENT AIMING IN ANY LIGHT
User-selectable LED brightness settings with an “off” in between each setting to adapt to any environment.
QUICK & EASY ADJUSTMENTS
Crisp, precise, windage/elevation adjusters require no tools. Capped, locking or zero stop adjusters ensure no accidental shift.
ULTRA DURABLE FOR ENSURED RELIABILITY
Ruggedized design engineered to withstand extreme conditions and tested to military standards and protocols.
EDGE-TO-EDGE CLARITY
Fully multi-coated, broadband, anti-reflective glass provides excellent light transmission, true detail and color with zero distortion.
FAST SCANNING, DETECTION AND TRACKING
Extra-wide field of view for maximum situational awareness.
PURPOSE-DRIVEN DESIGN
Matte finish and easy-grip controls for fast, intuitive adjustments.
RAPID TARGET ACQUISITION
Choose from a variety of specially engineered reticle designs for fast ranging and holdovers.
REPOSITIONABLE MAGNIFICATION LEVER
Accommodates different shooting positions and rifle configurations.
EASY-FOCUS EYEPIECE
Diopter accommodates the shooter’s individual prescription.

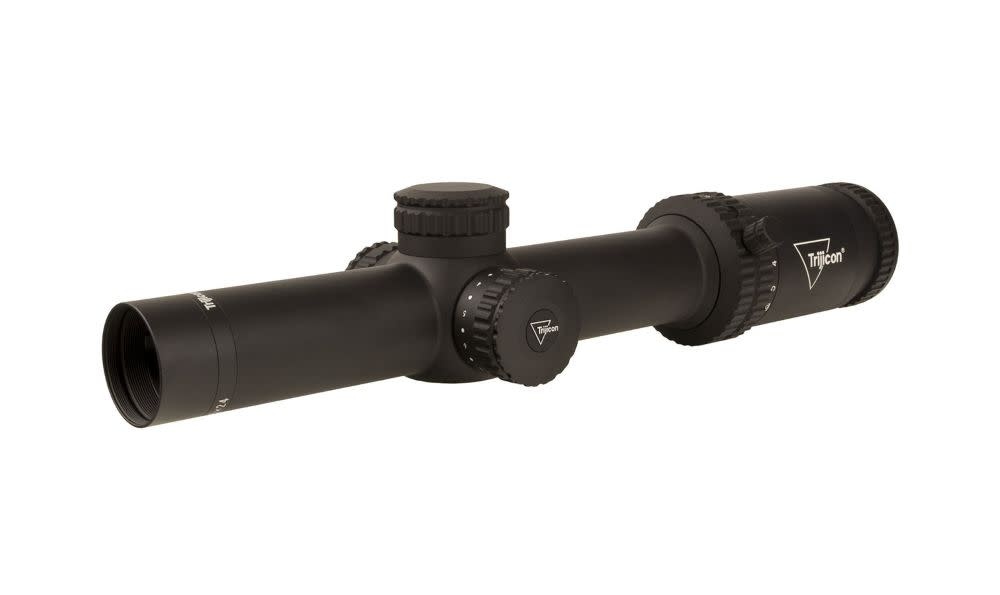

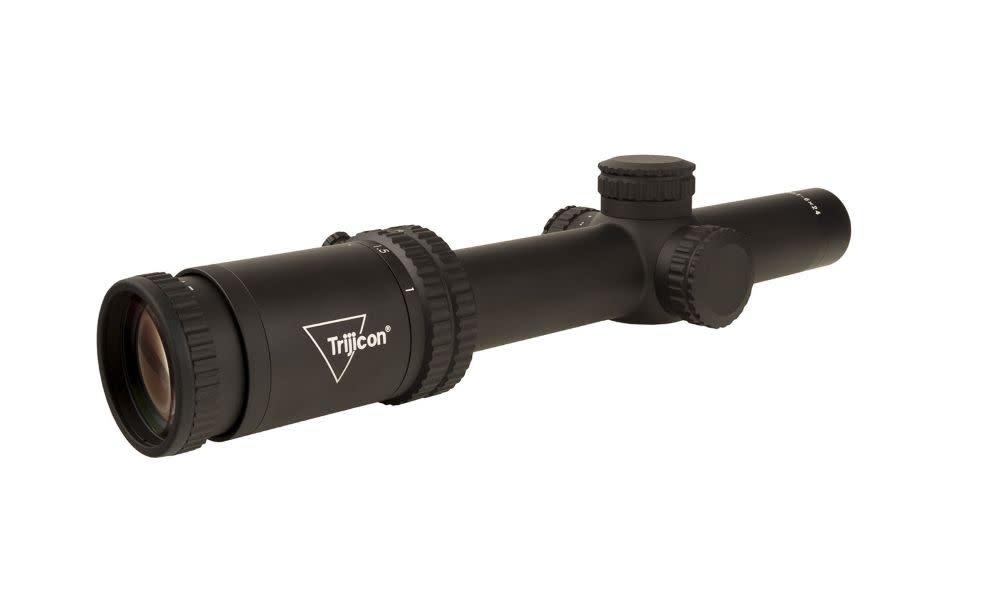

SPECS:
- Length x Width x Height: 10.9 in x 2.8 in x 2 in (276.86mm x 71.12mm x 50.8mm)
- Weight: 18.3 oz. (518.8g)
- Magnification: 1-6x
- Objective Size: 24mm
- Tube Size: 30mm
- Reticle Pattern: MRAD Segmented Circle
- Day Reticle Color: Red
- Focal Plane: First
- Illumination Source: LED
- Illumination Settings: 10
- Power Source: 1 CR2032
- Battery Life: 68 hours
- Adjustment: 0.1 MRAD per click
- Adjustment Range: 29.1 MRAD Total Travel
- Eye Relief: 3.5 in. - 3.9 in. (88.9mm - 99.06mm)
- Exit Pupil: 0.47 in. - 0.16 in. (11.94mm - 4.06mm)
- Field of View (degrees): 21.4° - 3.58°
- Field of View (feet): 113.4 ft. - 18.8 ft. @ 100 yds. (37.8 - 6.27m @ 100m)
- Housing Material: 6061 Aircraft Grade Aluminum
- Finish: Matte Black
